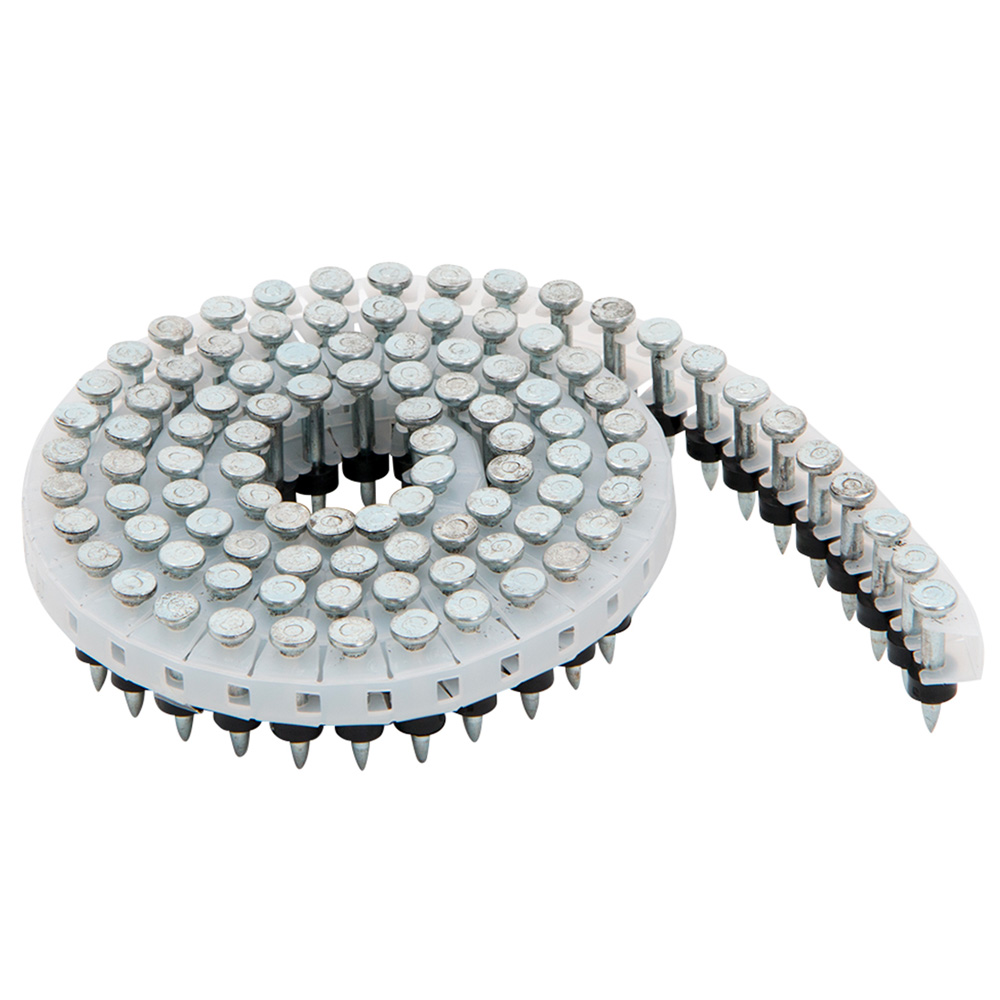

Concrete Pins MAX HN25C

  • Technical Specification
    • Nail Diameter : .099″ (2.50 mm) to .120″ (3.0 mm)
    • Head : Round Flat Countersunk Head
    • Shank Form: Smooth Shank & Step
    • Finish Type : Electro-Galvanized
    • Nail Length : 5/8″(15 mm) to 1″(25 mm)
    • Point : Ballistic Point
    • Capacity : 100 Nails/Coil
    Application
    • Drywall Track
    • Metal Connector to Brick
    • Metal Connector to Concrete Wall
    • Smooth Edge
    • Steel Top Plate to Steel & Concrete
    • Metal Trak to Concrete & Brick
    • Carpet Tack to Concrete
YOU-ONE
Product Code		 INCH MM NAILS/BOX NAILS/CTN CTNS/PLT
(M PCS) (M PCS)
YF-CPC615V5 .099 x 5/8 2.5 x 15 1M 10M 40
YF-CPC619V5 .099 x 3/4 2.5 x 19 1M 10M 40
YF-CPC622V5 .099 x 7/8 2.5 x 22 1M 10M 40
YF-CPC625V5 .099 x 1 2.5 x 25 1M 10M 40
YF-CPC619W0* .120 x 3/4 3.0 x 19 1M 10M 40
YF-CPC625W0* .120 x 1 3.0 x 25 1M 10M 40

* Step Shank, Black Plastic Guide
* M = 1,000 Nails

YOU-ONE collated fasteners are designed to fit the tools and models indicated

Manufacturer Model
MAX HN25C
HITACHI NC50H
MAKITA AN250HN
